Commercial 40mm Sliding Door

When it comes to finding a sliding door system that has the perfect equilibrium of contemporary design, robustness, smooth functionality, and state of the art technology, our Commercial 40mm Sliding Door offers exactly that. The toughest player from our Enovation range, we assure you a long lasting, weather protecting, durable system. High performance low profile sills, clean lines, soft curved transoms and mullions, displays beauty and aesthetics inspired by modern European architecture.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055
Design Registration Numbers: 33023, 33024, 33025, 338599

OPTIONS

Versatile configuration
Heavy duty options for high wind load areas
Single direction or bi-parting openings
Single and double glazing
Multiple track options
90 degree post-less corner
High performance disability access sill

FEATURES & BENEFITS

Durable to ferocious weather conditions
Ezi-Slide heavy duty dual carriage bogey rollers
Dual precision bearings per roller for enhanced durability and operation
Low profile high performance sills
Clean lines with soft curved mullions and transoms
Ezi-Seal technology optimising acoustics and insulation
Versatile screening alternatives
NATA tested and accredited


SPECIFICATIONS

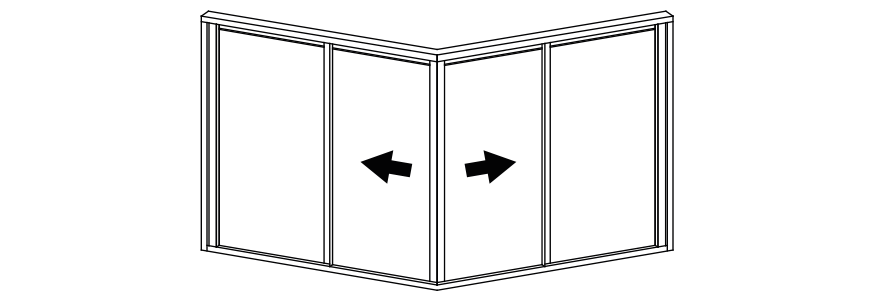

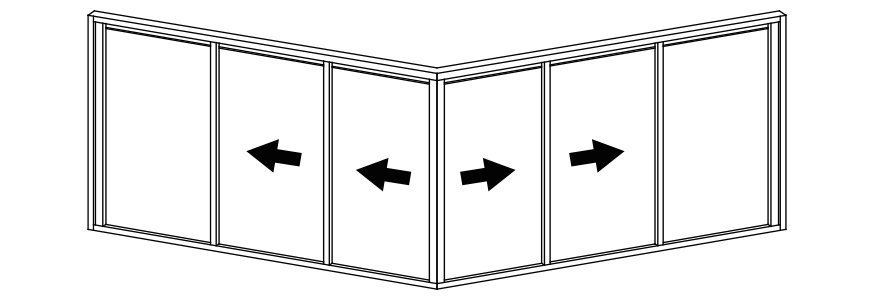

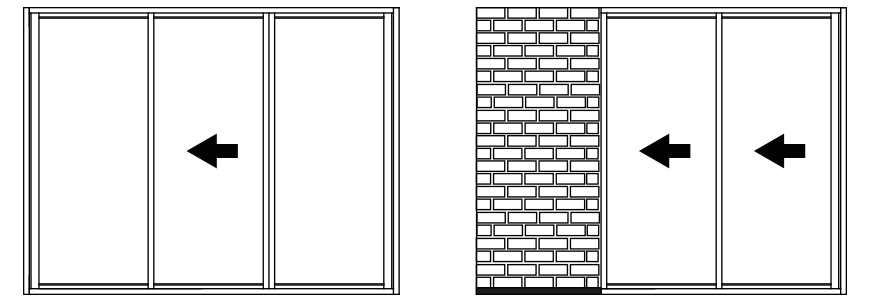

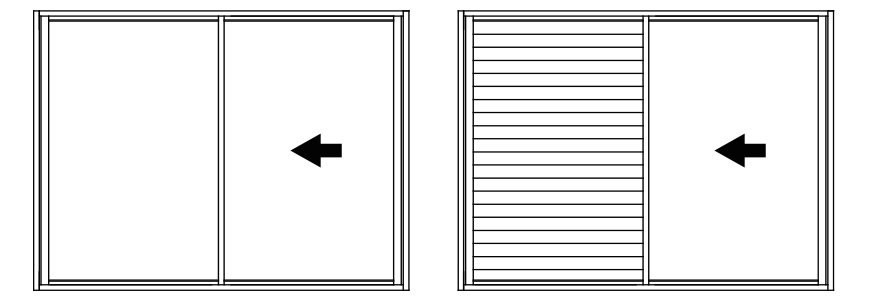

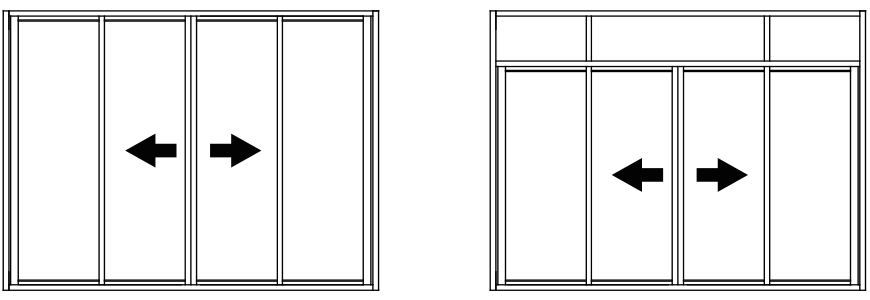

CONFIGURATION EXAMPLES (viewed from outside)

Frame Sizes
50mm, 101.6mm, 150mm, 200mm

Max. Opening Size
3100mm high x 12000mm wide

Maximum Panel Size
3000mm high x 1800mm wide

Maximum Panel Weight
180kgs

Maximum No. of Panels
Unlimited

Glazing Range
5mm - 10.38mm (12.5mm pocket)
10.38mm - 15mm (18.5mm pocket)
15mm - 32mm (35.2mm pocket)

Arrow
Arrow
Slider
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

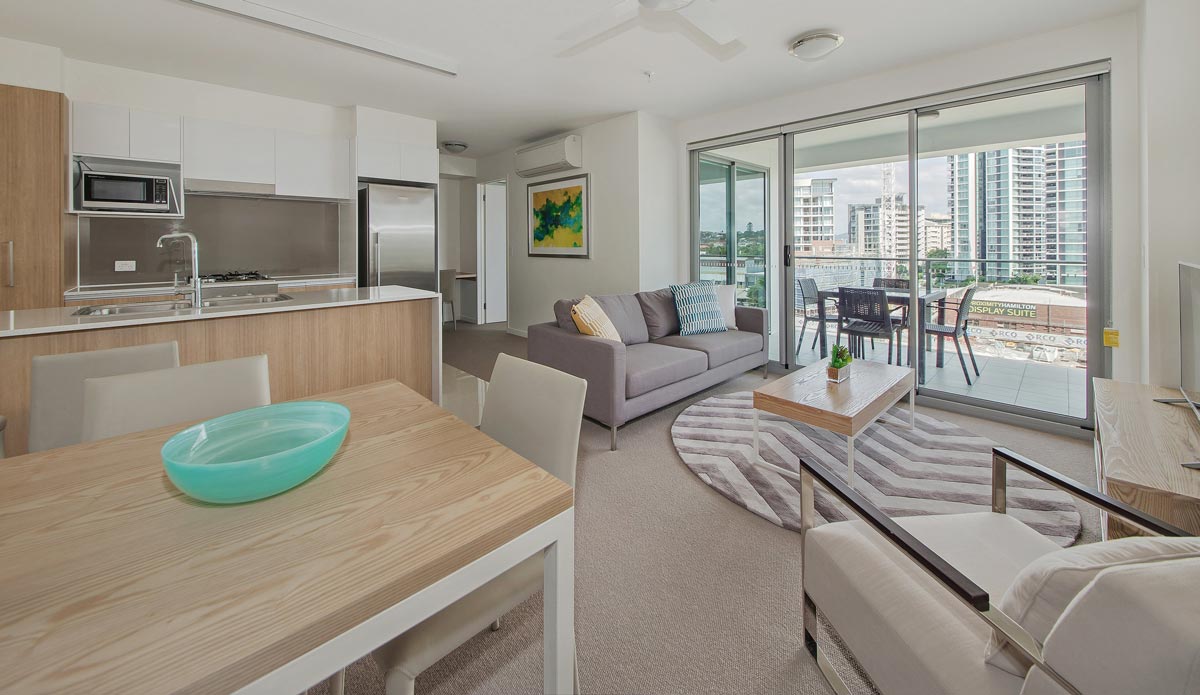

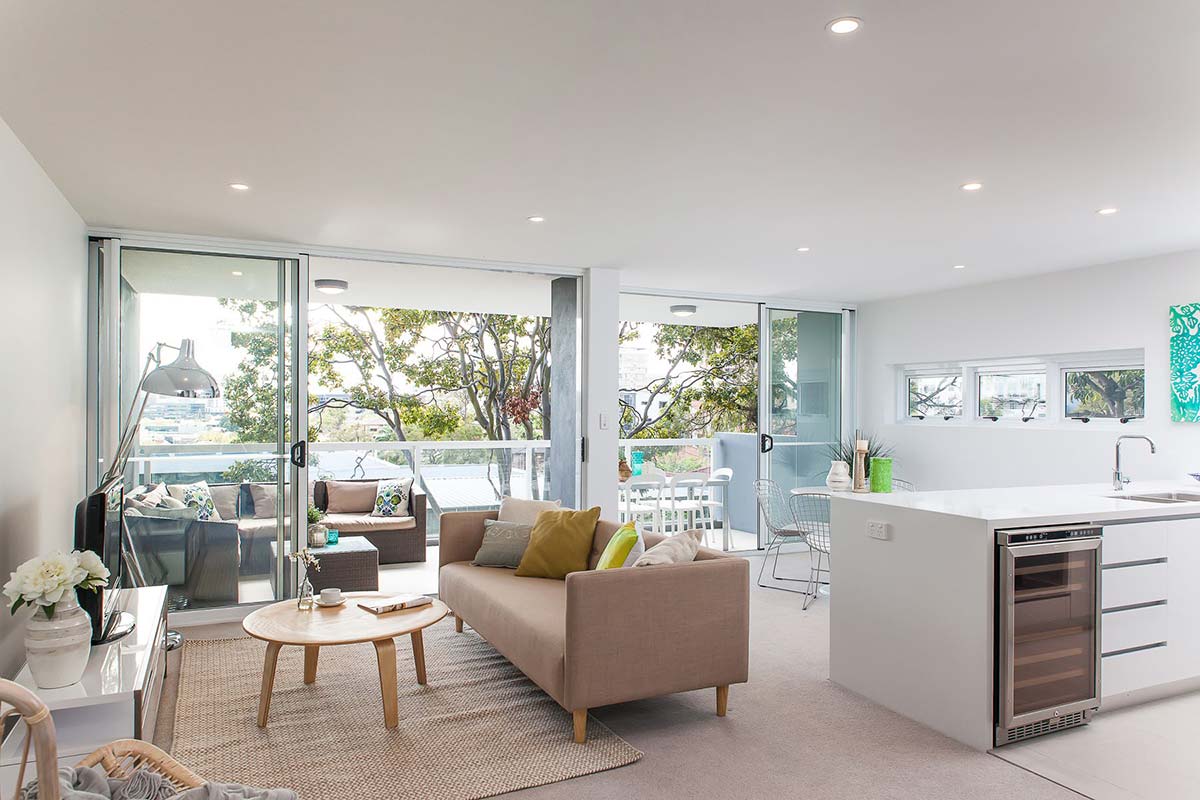

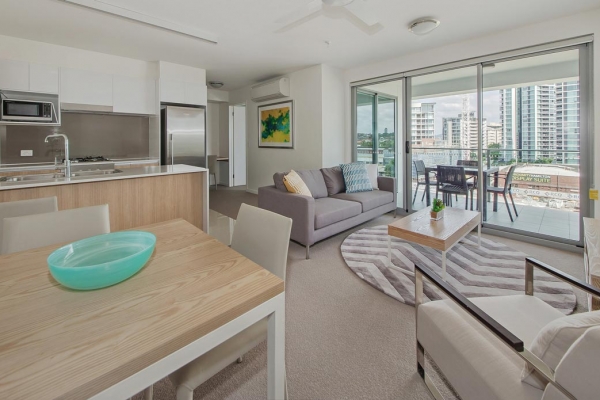

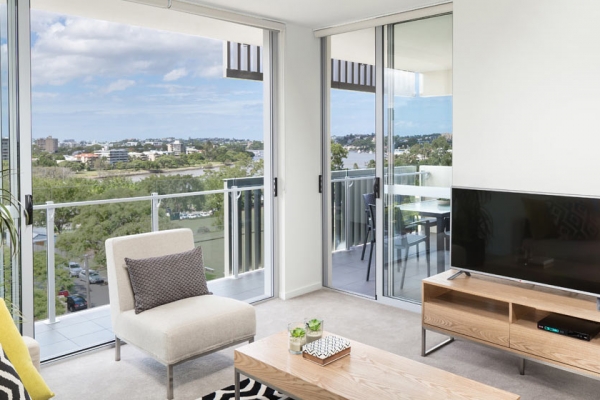

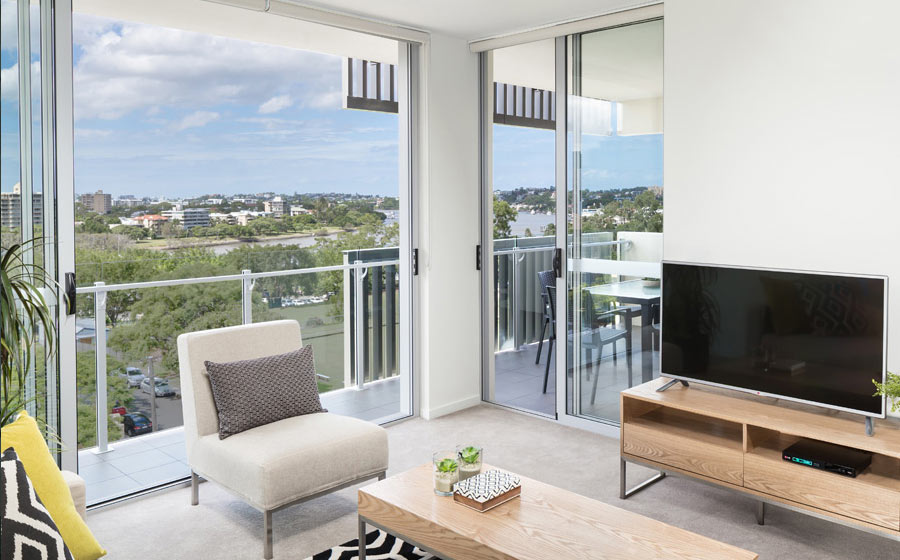

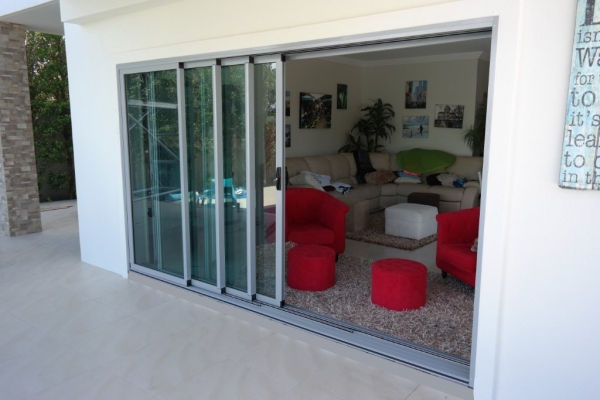

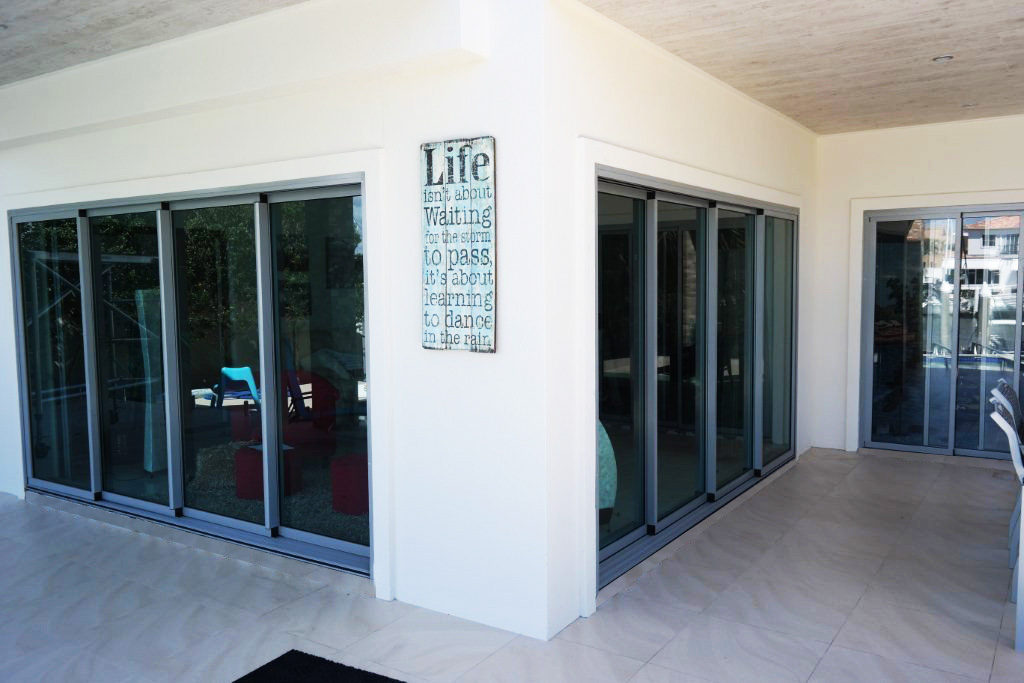

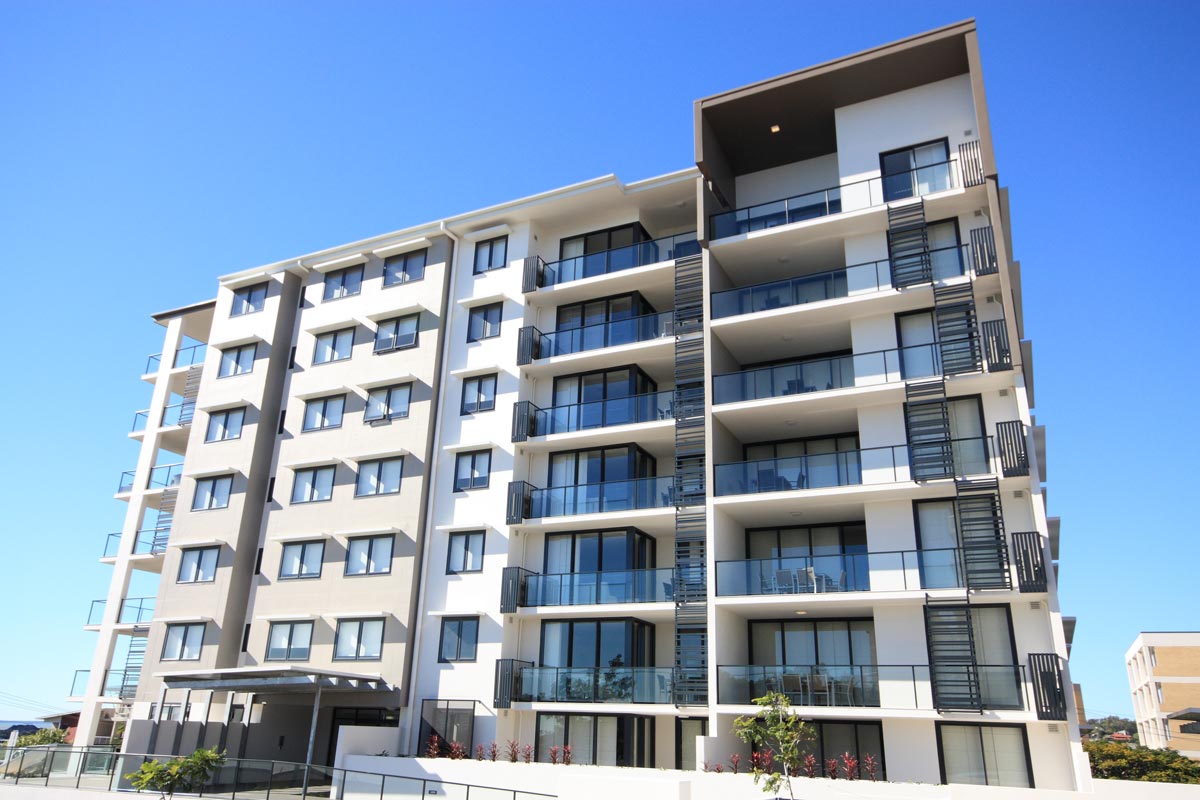

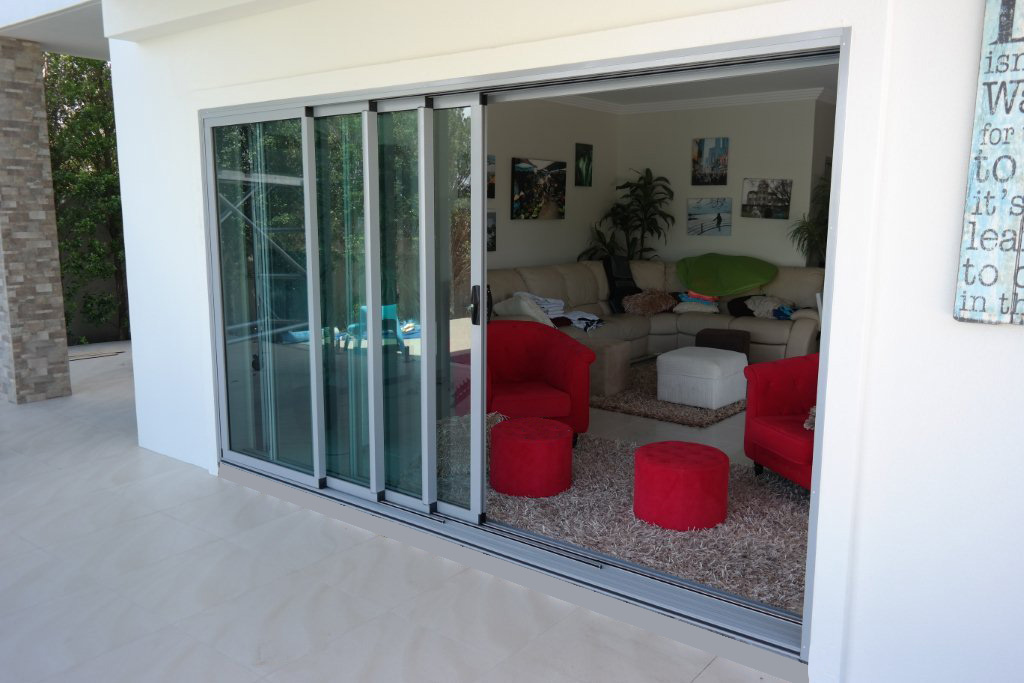

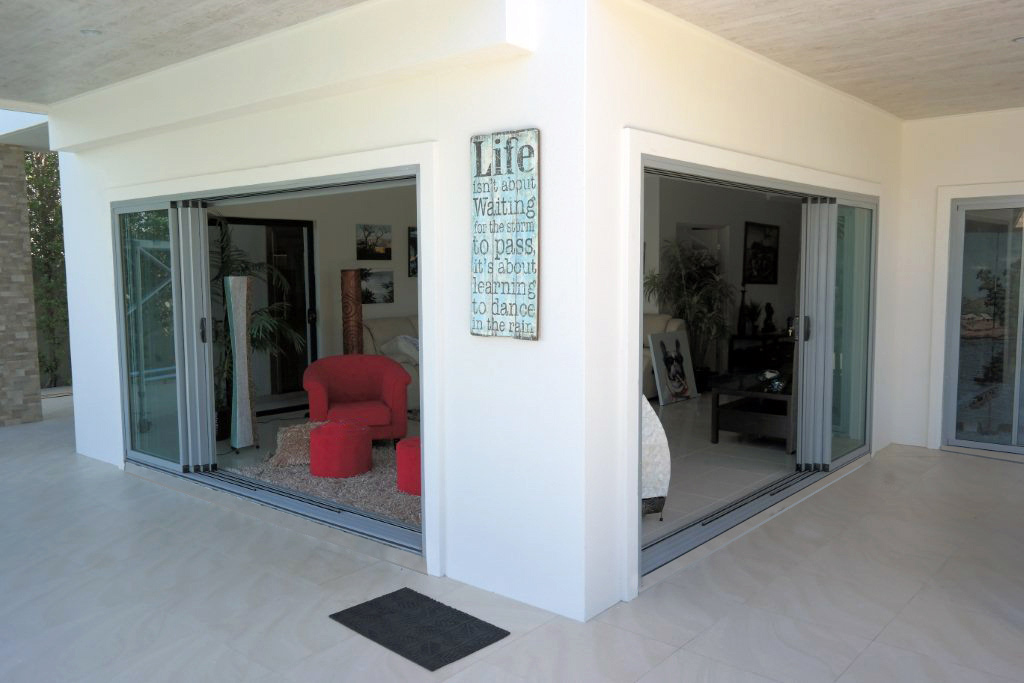

PHOTO GALLERY
