Bottom Rolling Bifold Door

Here at Ezi Aluminium Systems, we have developed a stylish Bottom Rolling Bifold Door system to accommodate the evolving architectural market. Free of fixed panels, mullions, and posts, provides an unobstructed panoramic opening to the outdoors encouraging Alfresco living. The unique incorporation of quality sill covers, guards, and drainage holes, minimises maintenance delivering consistent performance. Bottom Rolling systems allow the weight of the door to be transferred away from the top of the opening, eliminating the need for a strong, and often restricting upper beam permitting additional design space.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055

OPTIONS

Single or double glazing
Inward or outward folding configurations
90 degree post-less corner
Single direction or bi-parting openings
Centor’s retracting S1E insect and blind screening options
Dual, and three point locking systems for added security

FEATURES & BENEFITS

Huge opening free of fixed glass panels, mullions and posts
Smooth gliding operation
Ezi-Seal technology for enhanced weatherability, insulation, and acoustics
Movement controlled by articulated carriers
Sill covers to prevent dirt accumulation
Guards to remove any debris
Drainage holes to flush away water and dust
NATA tested and accredited


SPECIFICATIONS

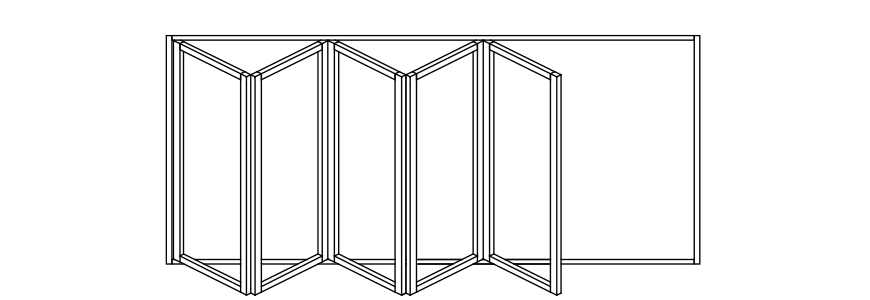

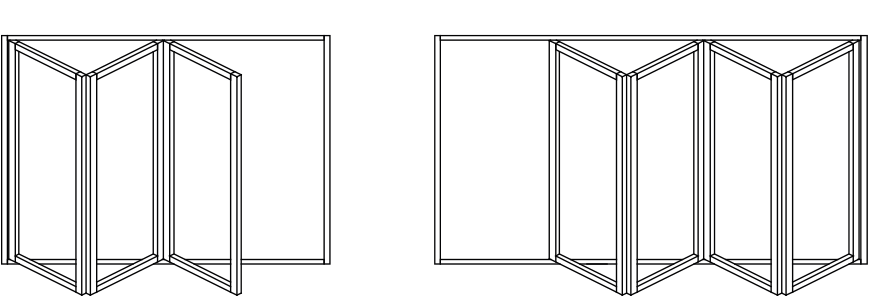

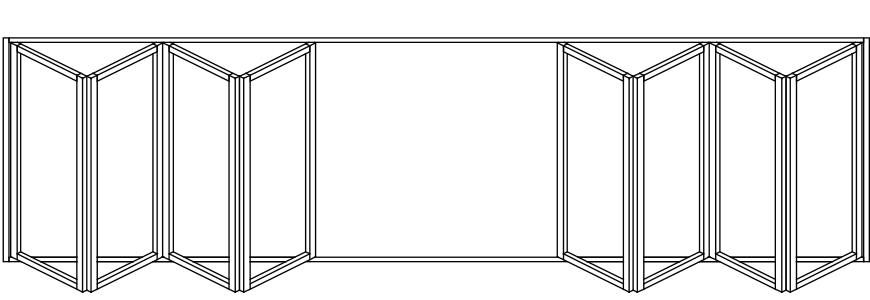

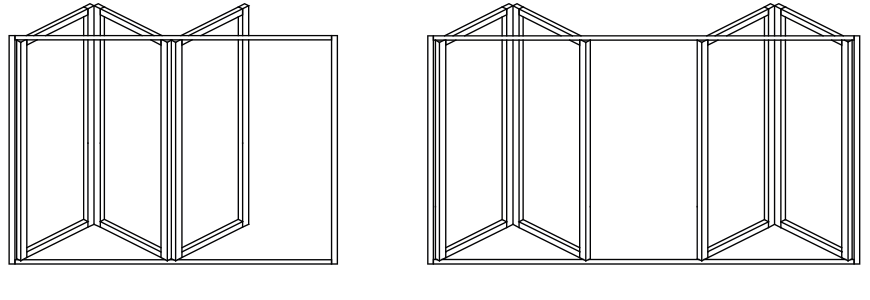

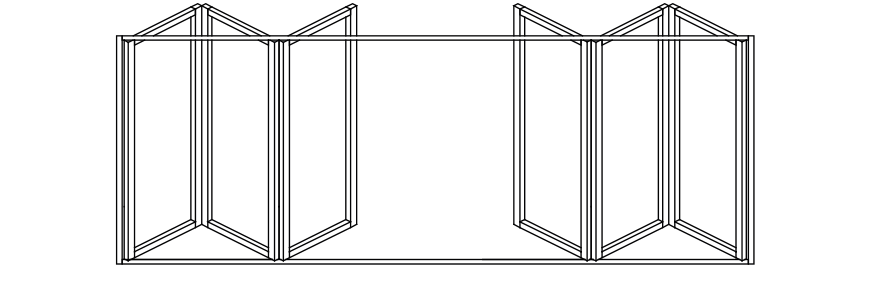

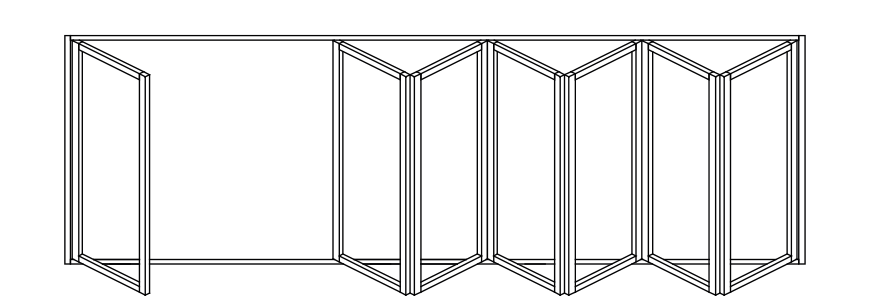

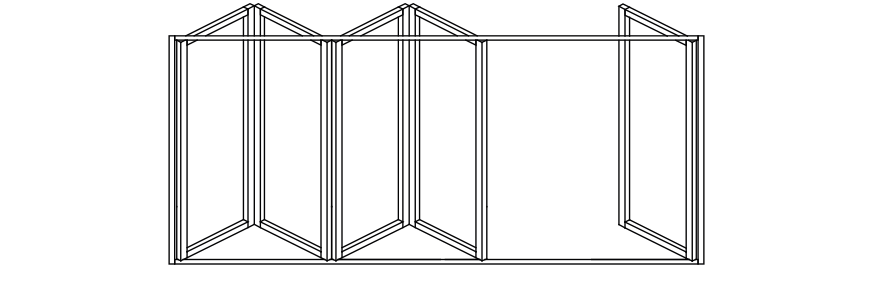

CONFIGURATION EXAMPLES (viewed from outside)

Frame Size
101.6mm

Max. Opening Size
2750mm high x 16000mm wide

Maximum Panel Size
2700mm high x 1000mm wide

Maximum Panel Weight
80kgs

Maximum No. of Panels
Up to 8 left + 8 right (16 in total)

Glazing Range
5mm - 13.5mm (16.2mm pocket)
13mm - 30mm (34.2mm pocket)

Arrow
Arrow
Slider
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

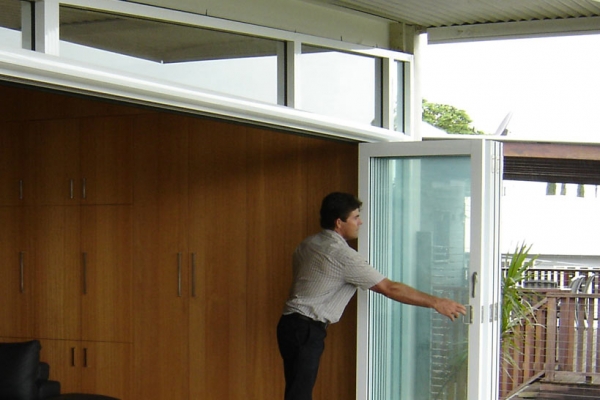

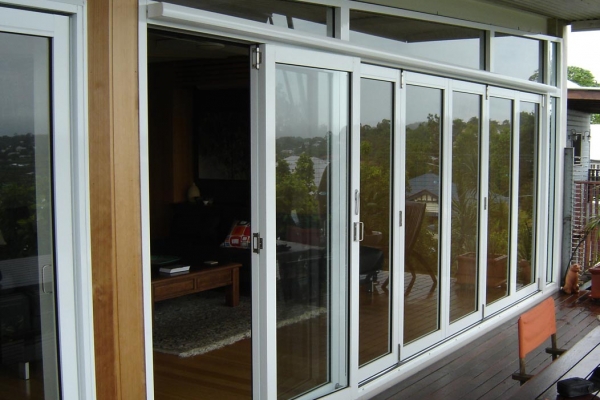

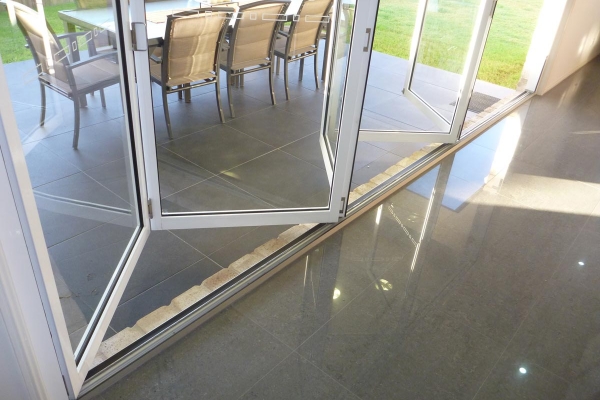

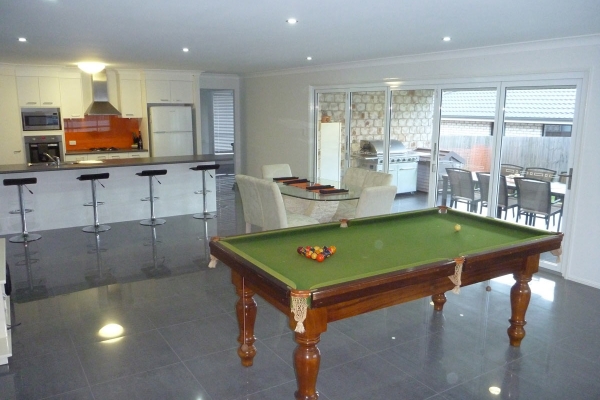

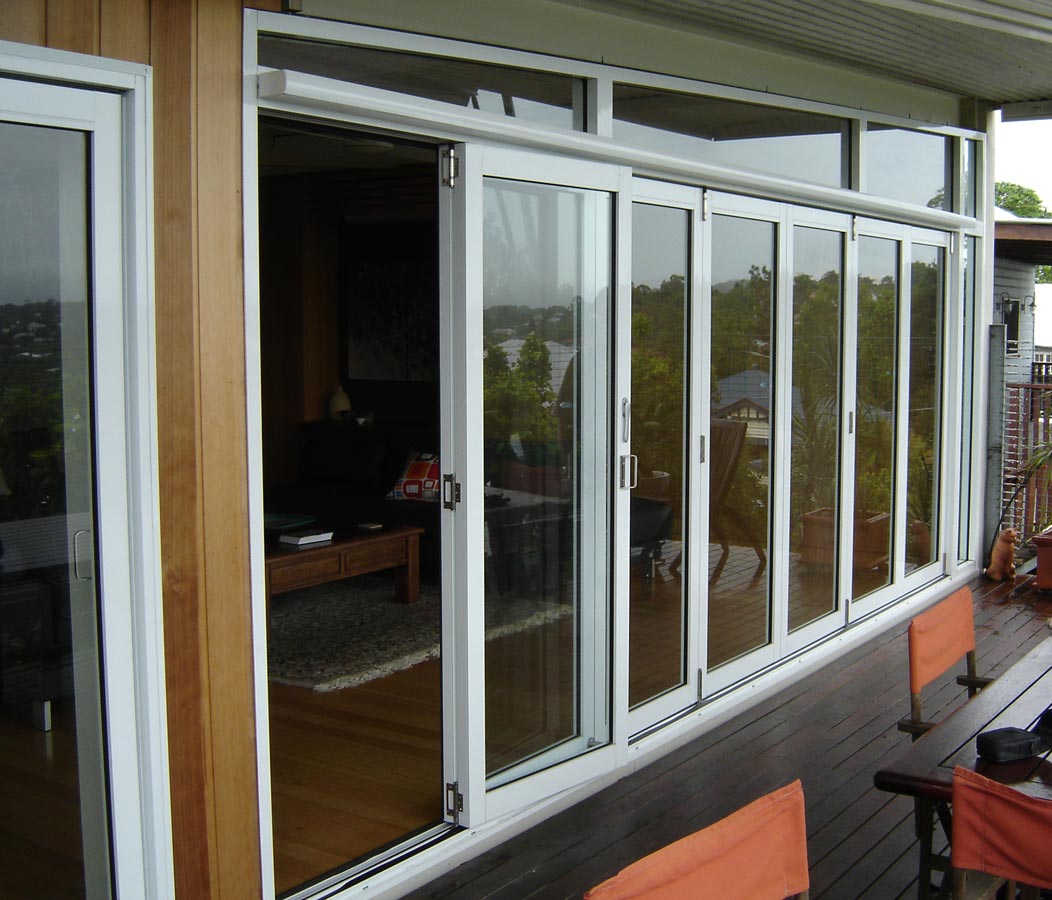

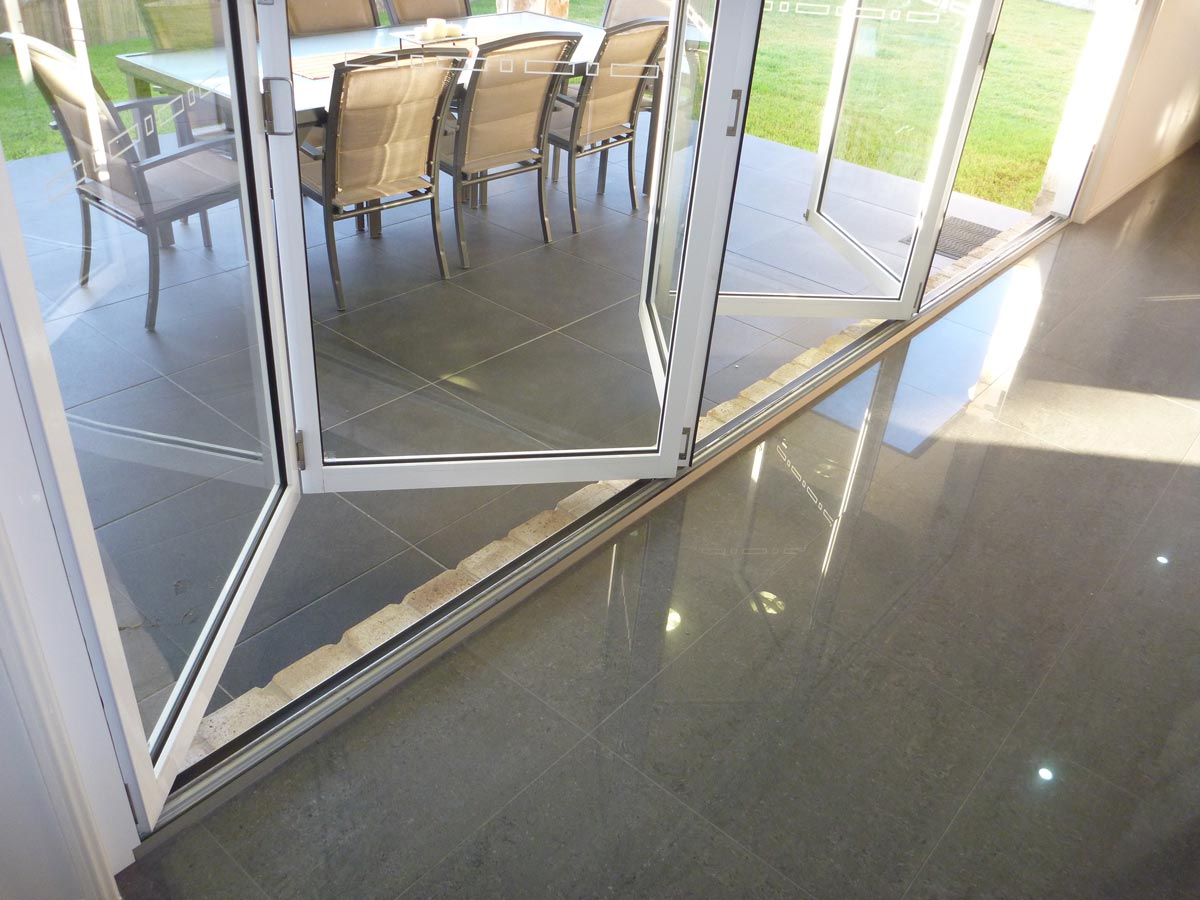

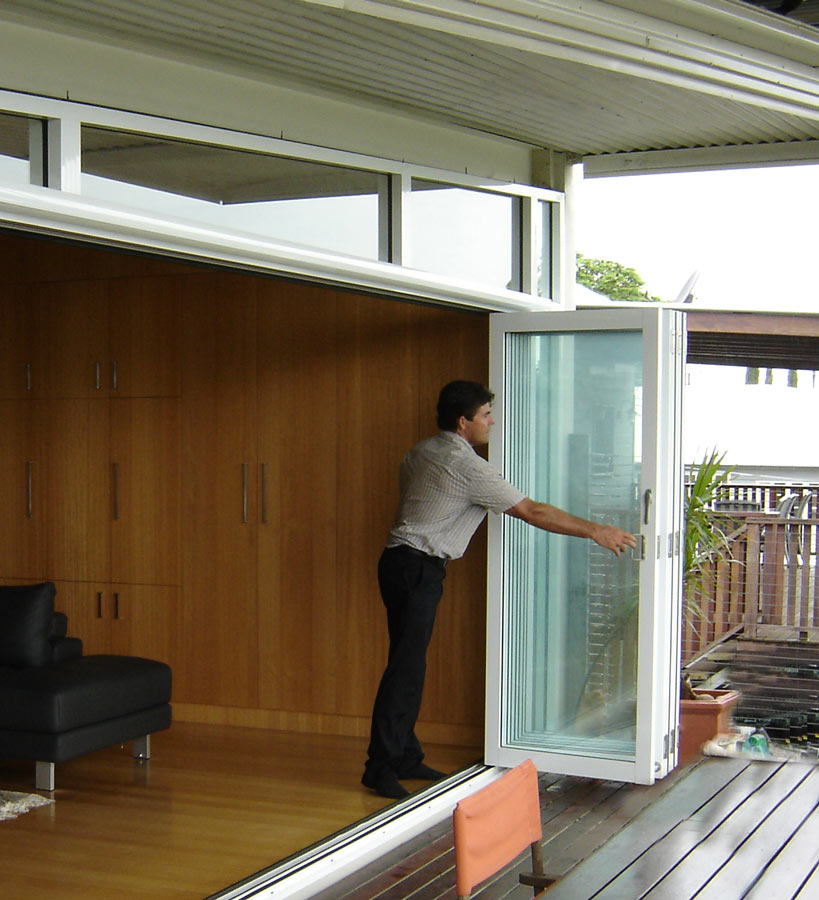

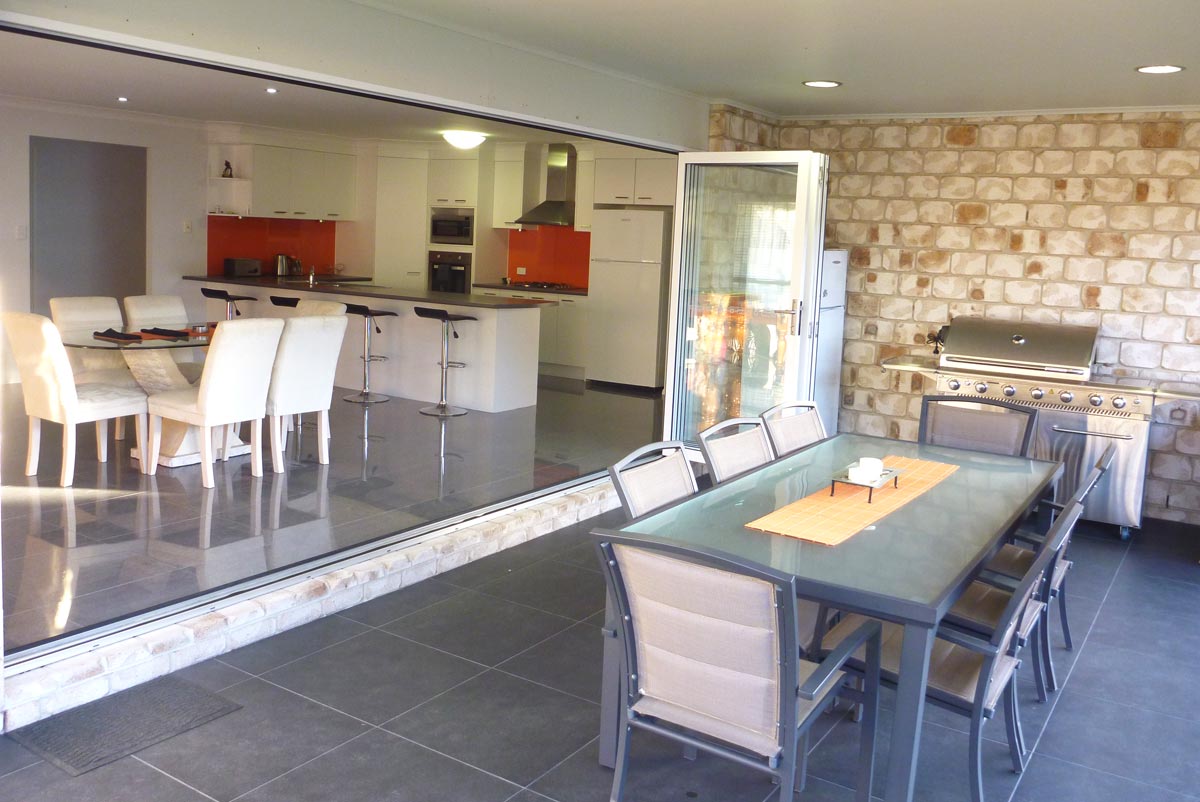

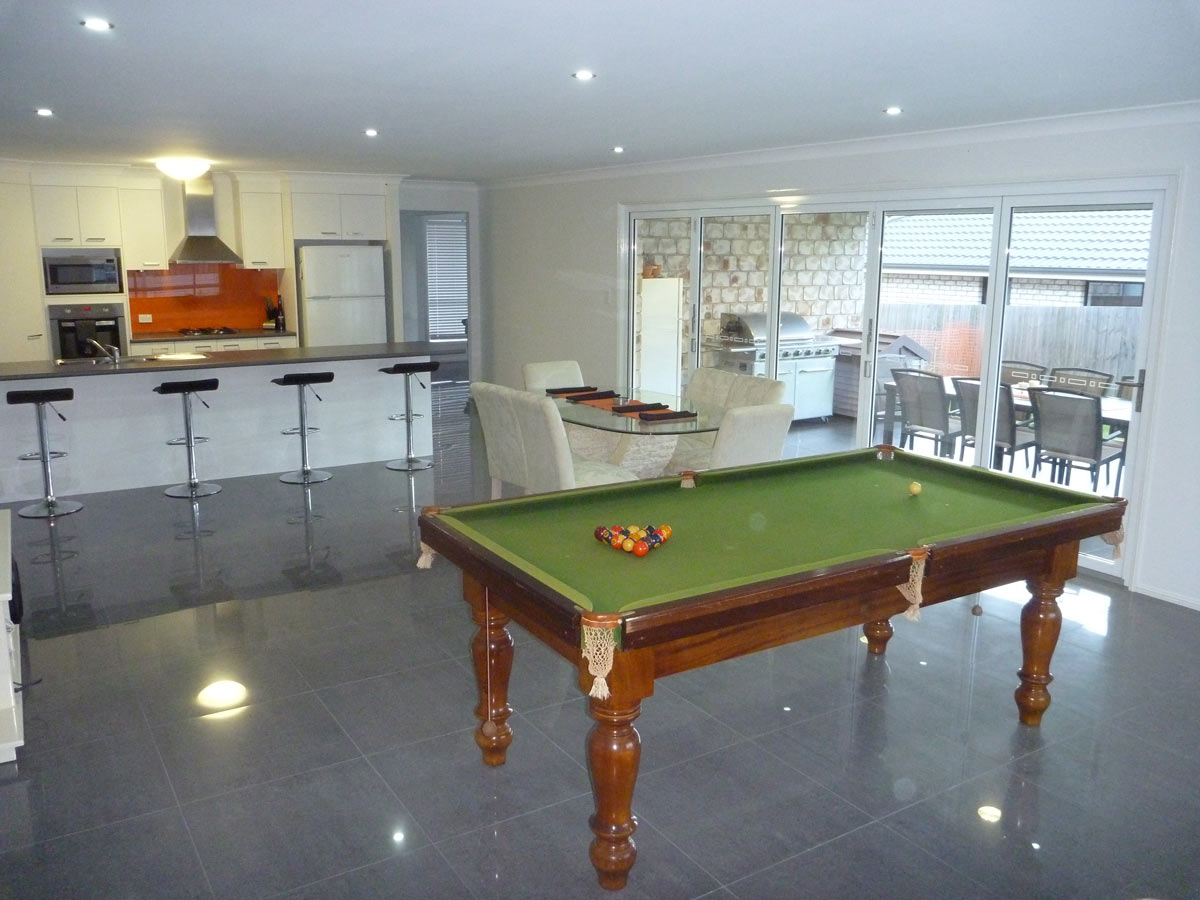

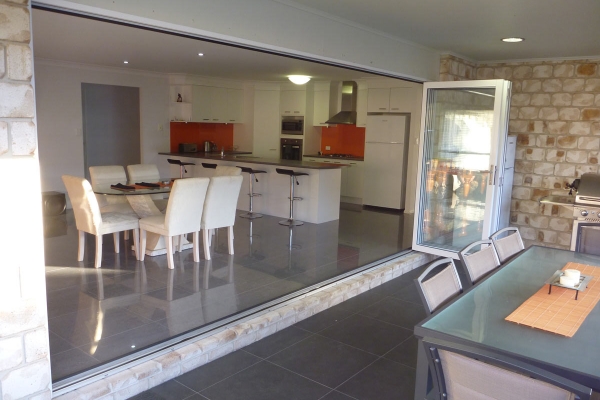

PHOTO GALLERY
