Top Rolling Bifold Door

When you open our Top Rolling Bifold Doors from the Alfresco range, it offers pure integration of the indoors and outdoors enhancing your Alfresco lifestyle. By using our system, it extracts the essence of nature indoors, truly creating an inviting gateway for sunshine and breeze to nourish and revitalise your home. Incorporated with Centor’s state of the art E2, E2i, and E3 range of industry leading hardware assures you an optimal high performing Top Rolling Bifold System.

Designed to Comply with Australian Standards AS1170, AS1288, AS2047 and AS4055
Design Registration Numbers: 335107, 335108

OPTIONS

E2 hardware offering quality features with economical spacious functionality
E3 hardware for enhanced durability, acoustic insulation and larger door panels
Bottomless sill for unobstructed room transition
Single or double glazing
Inward or outward folding configurations
90 degree post-less corner
Single direction or bi-parting openings
Centor’s retracting S1E insect and blind screening options
Dual, and three point locking systems for added security

FEATURES & BENEFITS

Huge opening free of fixed glass panels, mullions and posts
Smooth gliding operation
Ezi-Seal technology for enhanced weatherability, insulation, and acoustics
Complete vertical and horizontal adjustments
NATA tested and accredited


SPECIFICATIONS



CONFIGURATION EXAMPLES (viewed from outside)

Frame Size
101.6mm

Max. Opening Size
3100mm high x 16000mm wide

Maximum Panel Size
3000mm high x 1100mm wide using E2
3000mm high x 1200mm wide using E3

Maximum Panel Weight
60kgs E2
115kgs E3

Maximum No. of Panels
Up to 8 left + 8 right (16 in total)

Glazing Range
5mm - 13.5mm (16.2mm pocket)
13mm - 30mm (34.2mm pocket)

Arrow
Arrow
Slider
Depicted above are a selection of configuration examples. Thanks to our modular design, there are many other possible configurations available.

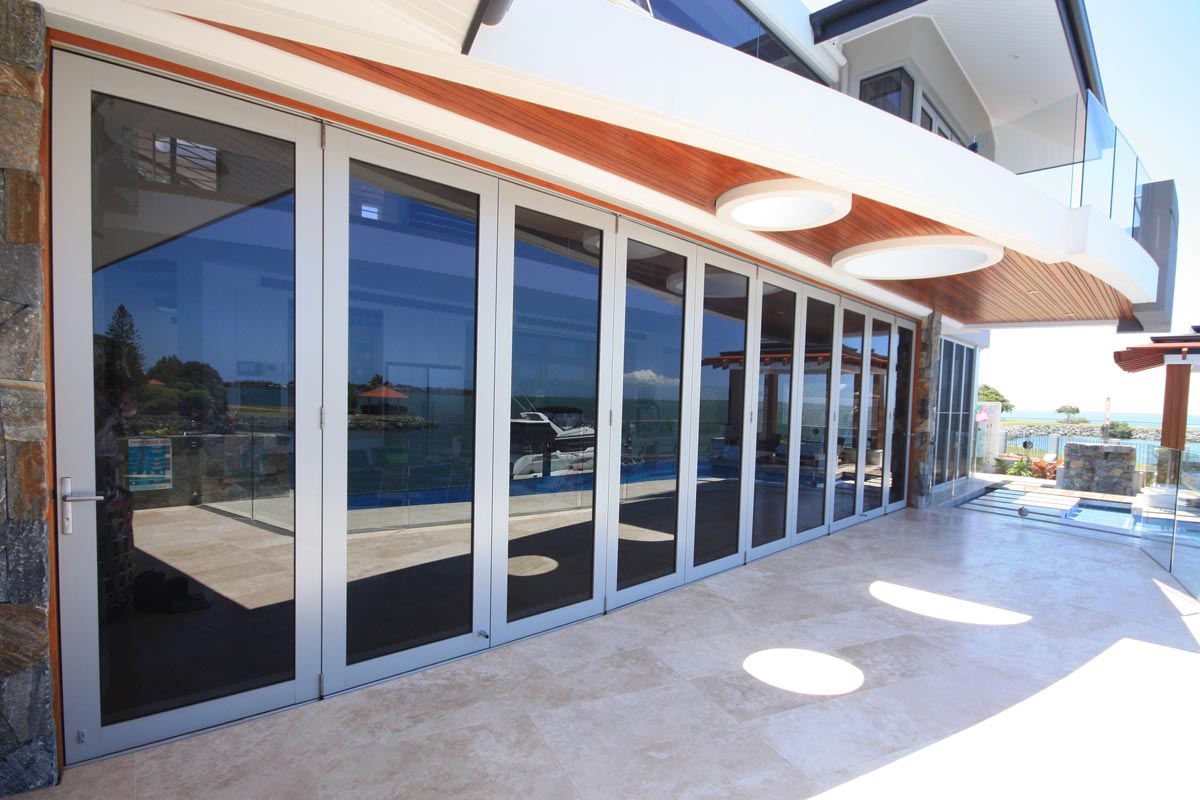

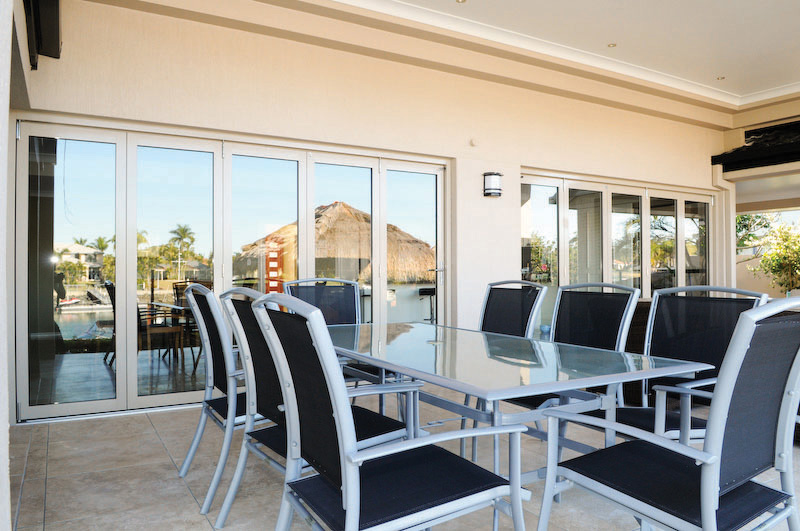

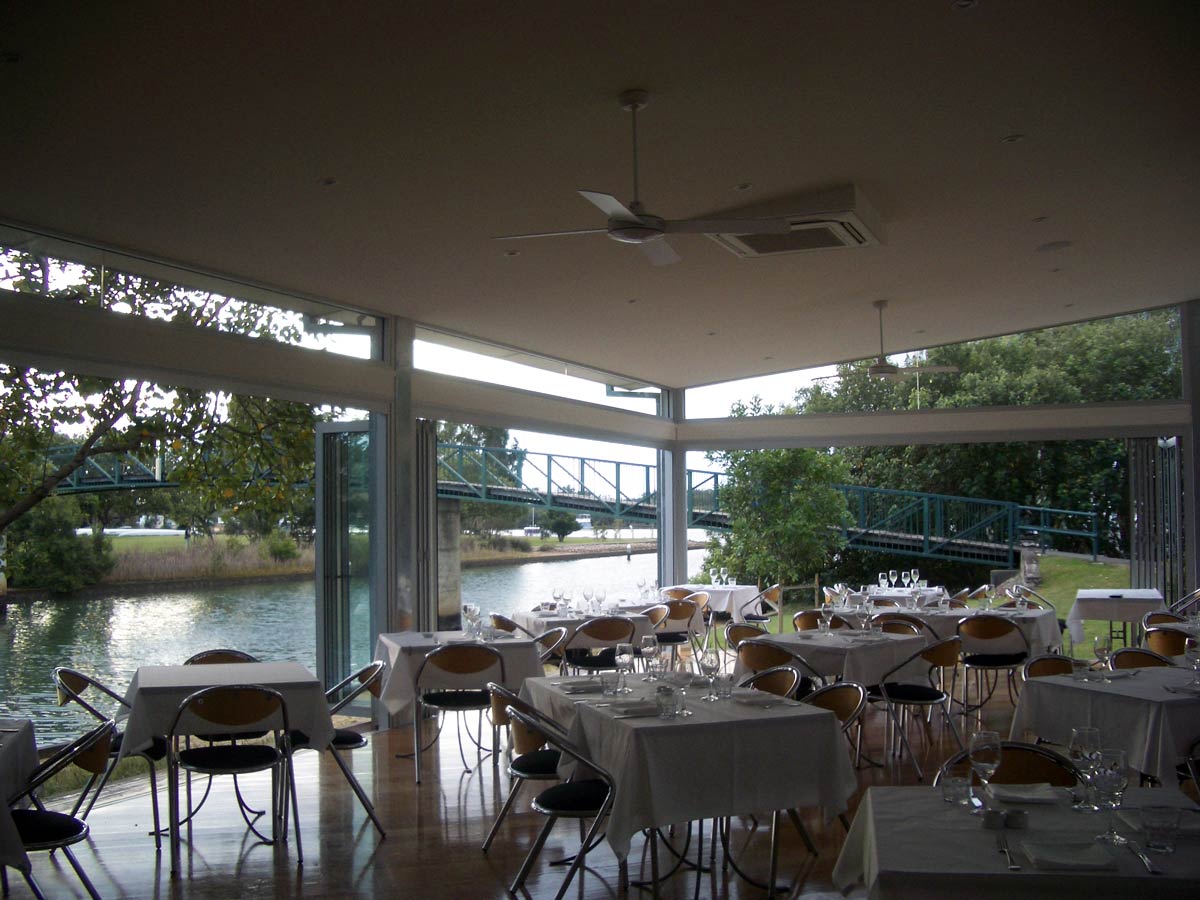

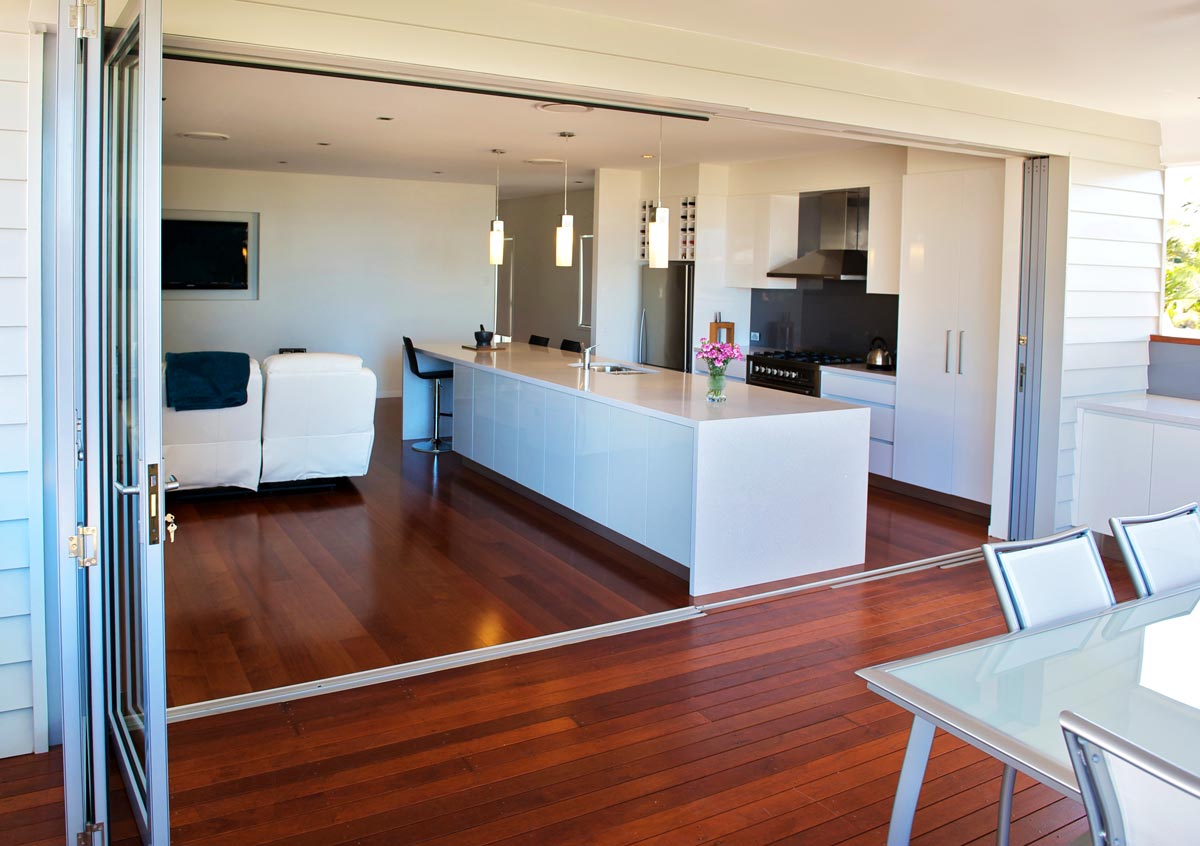

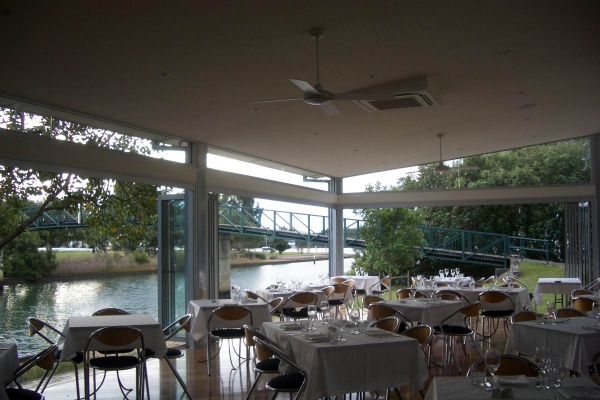

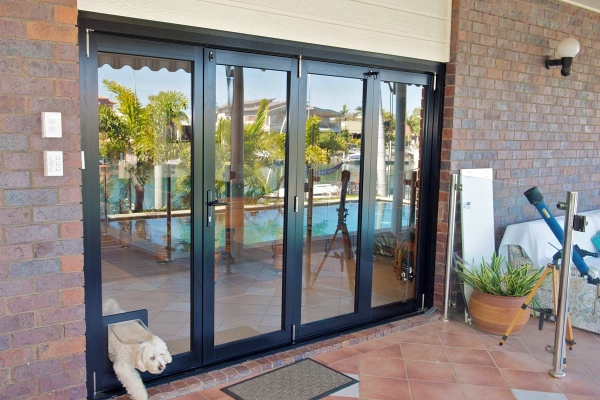

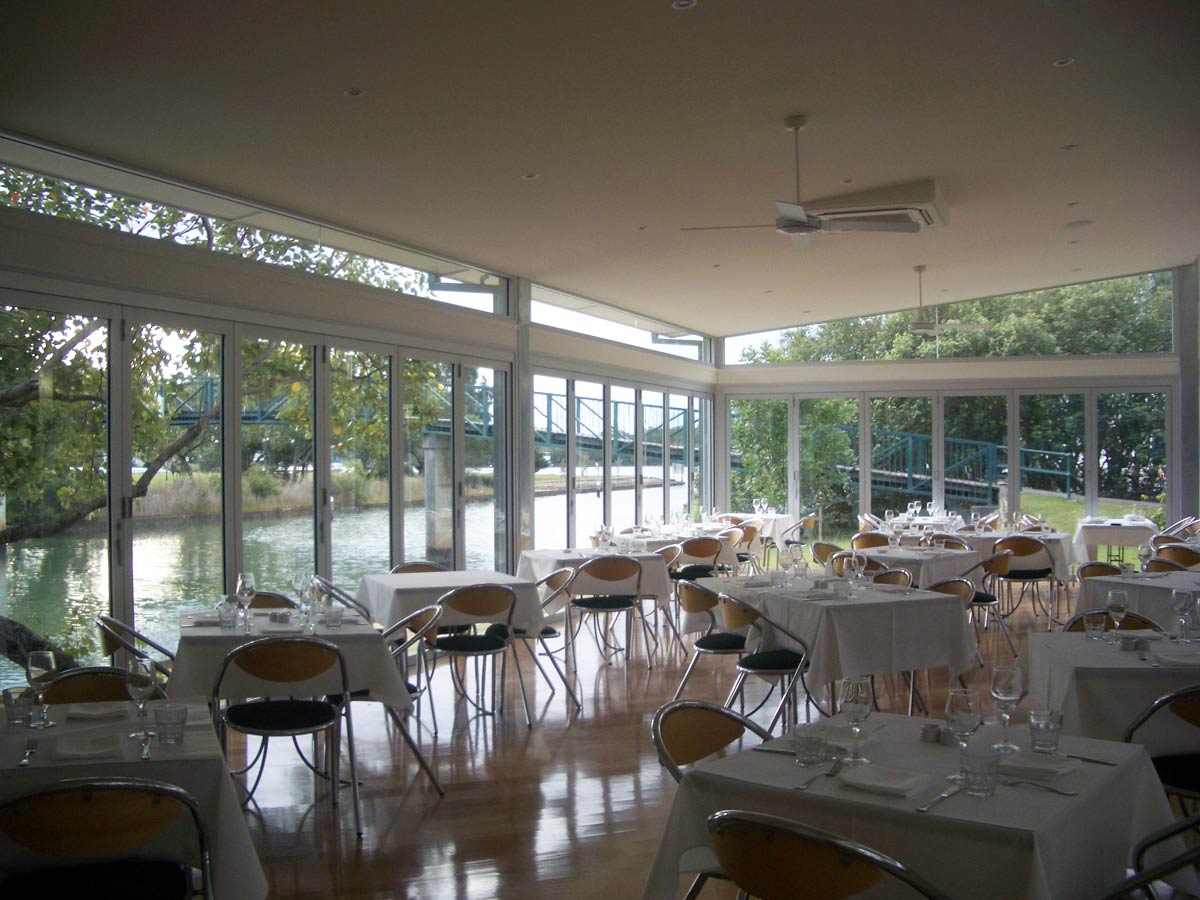

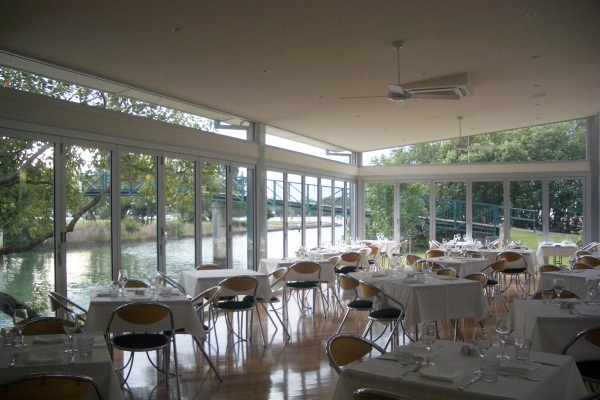

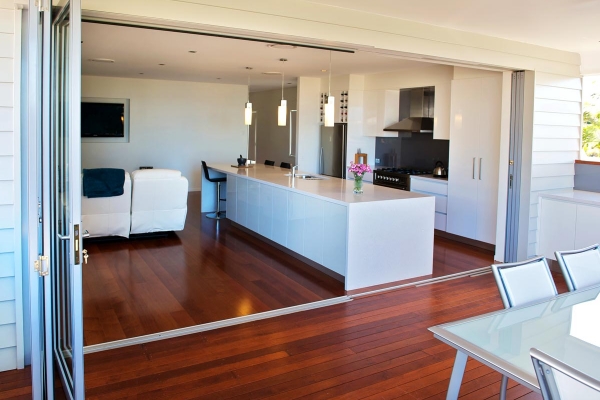

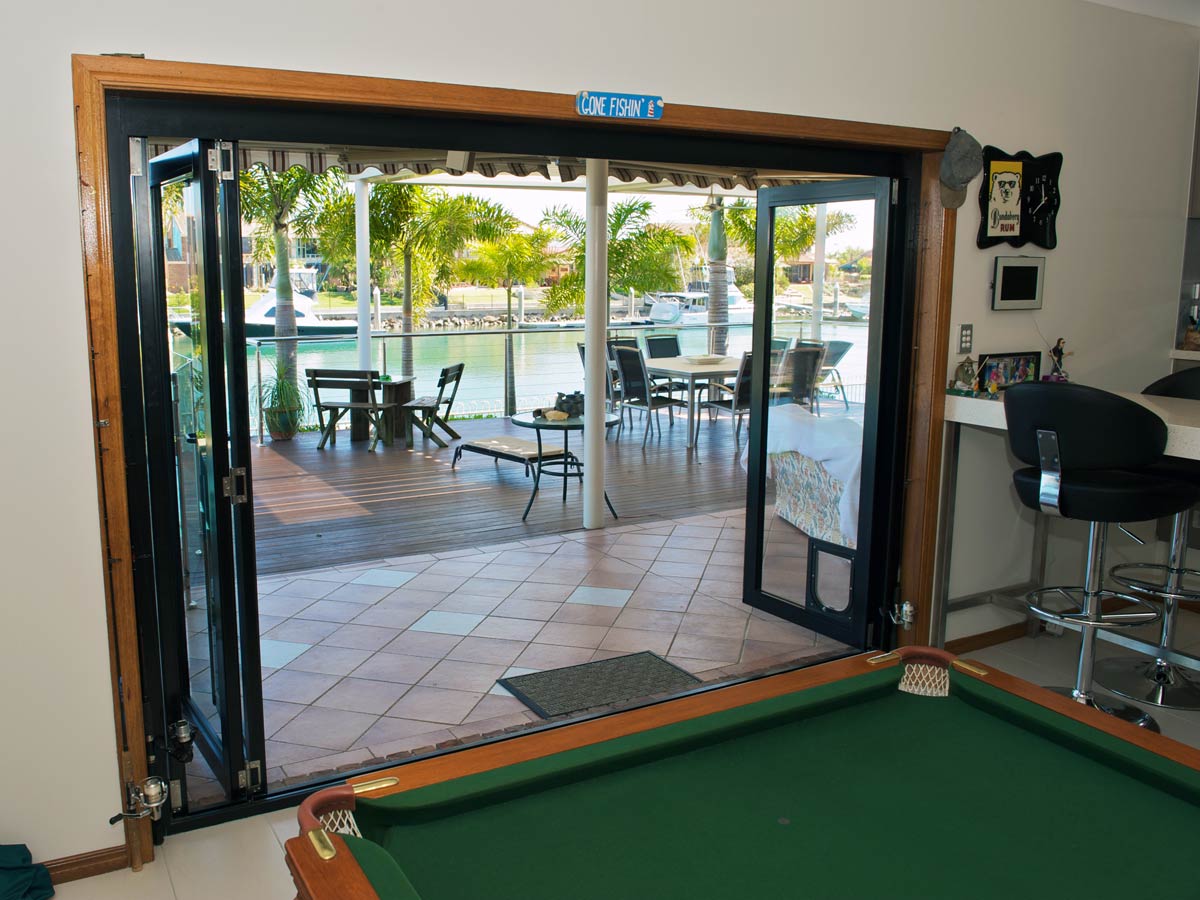

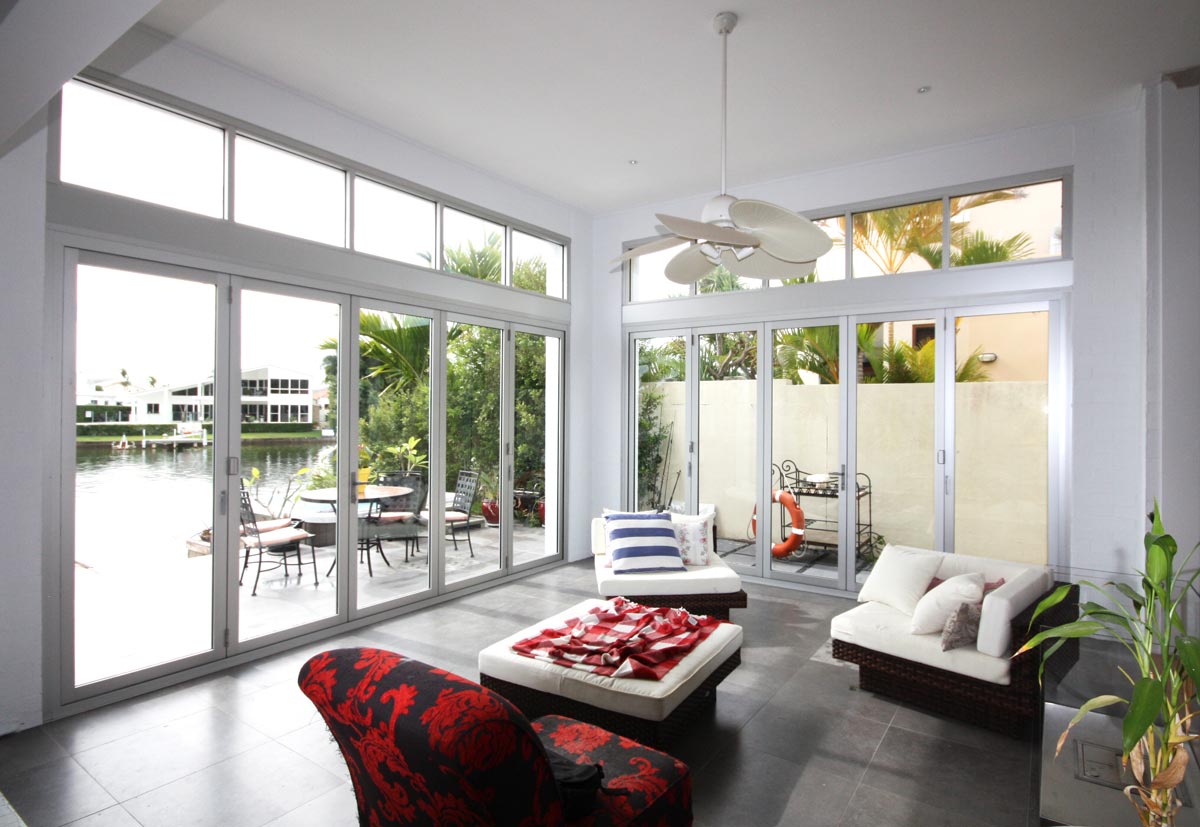

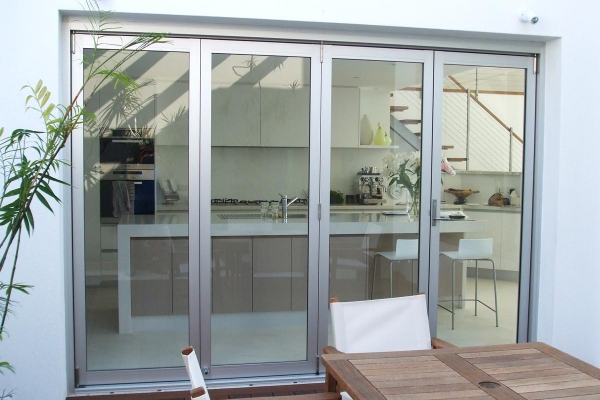

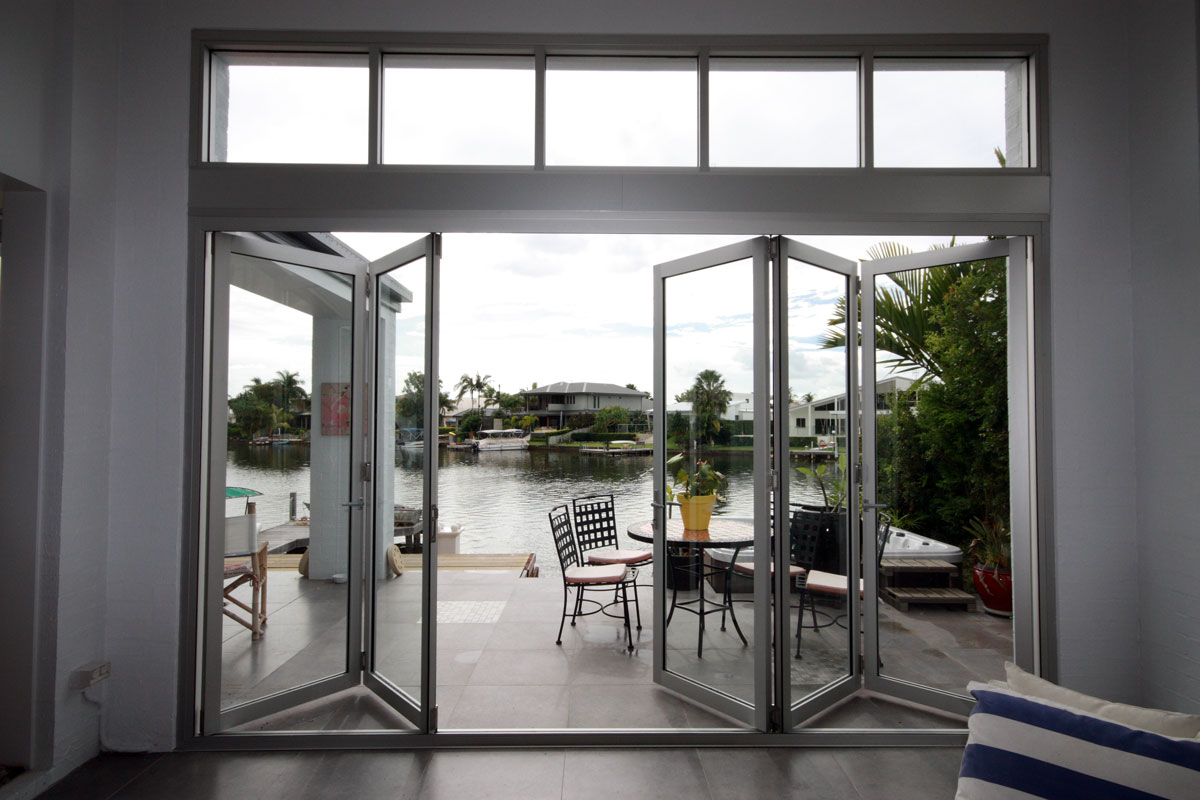

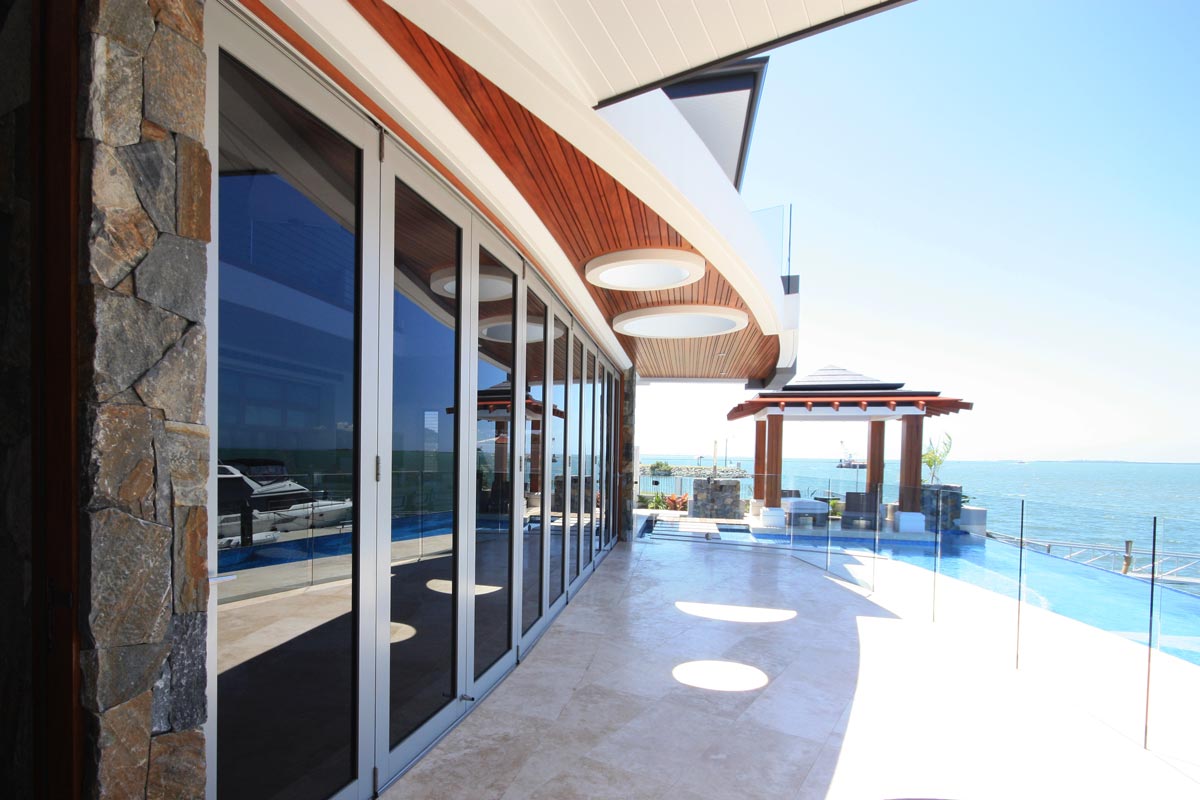

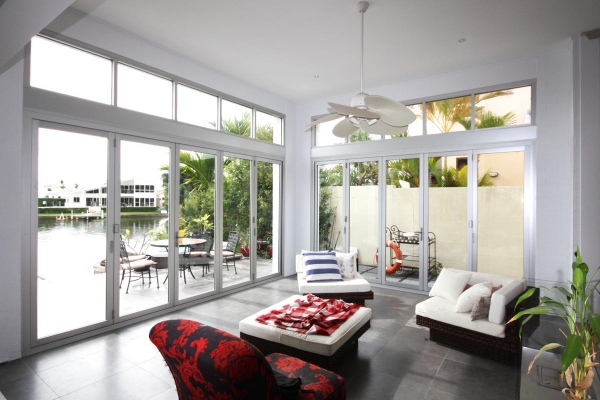

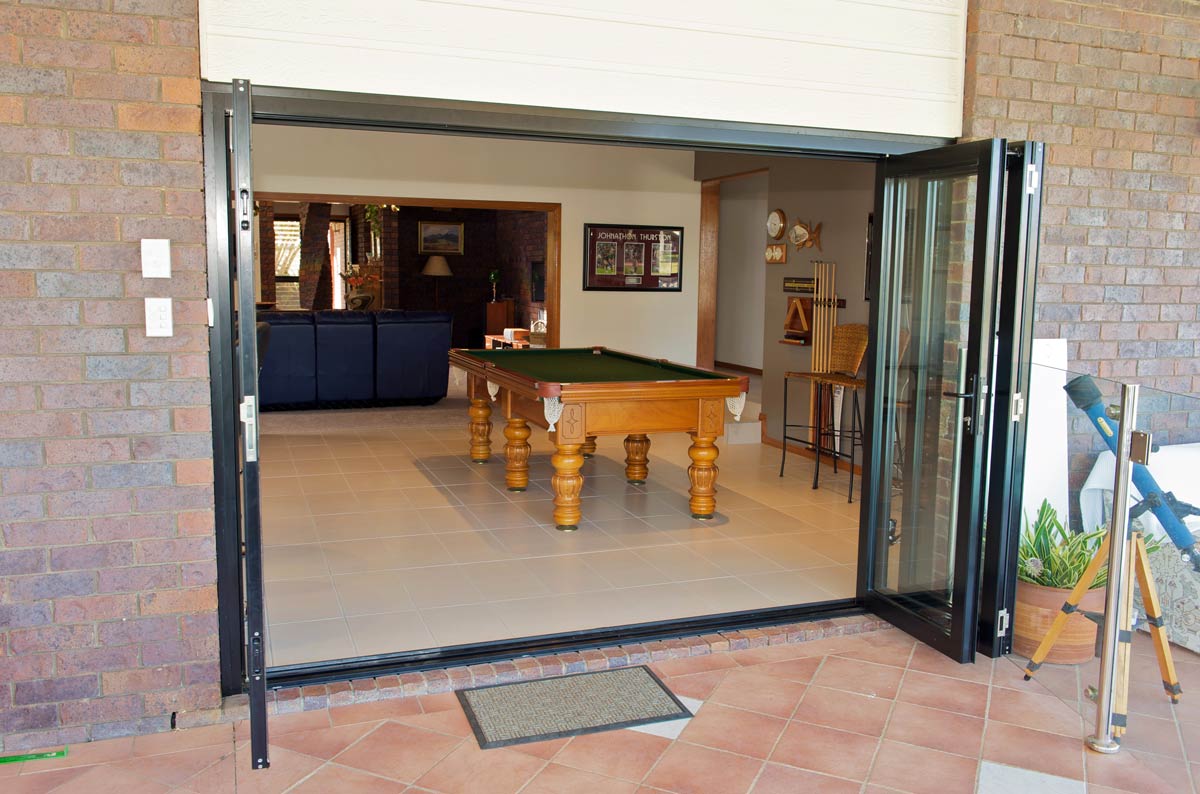

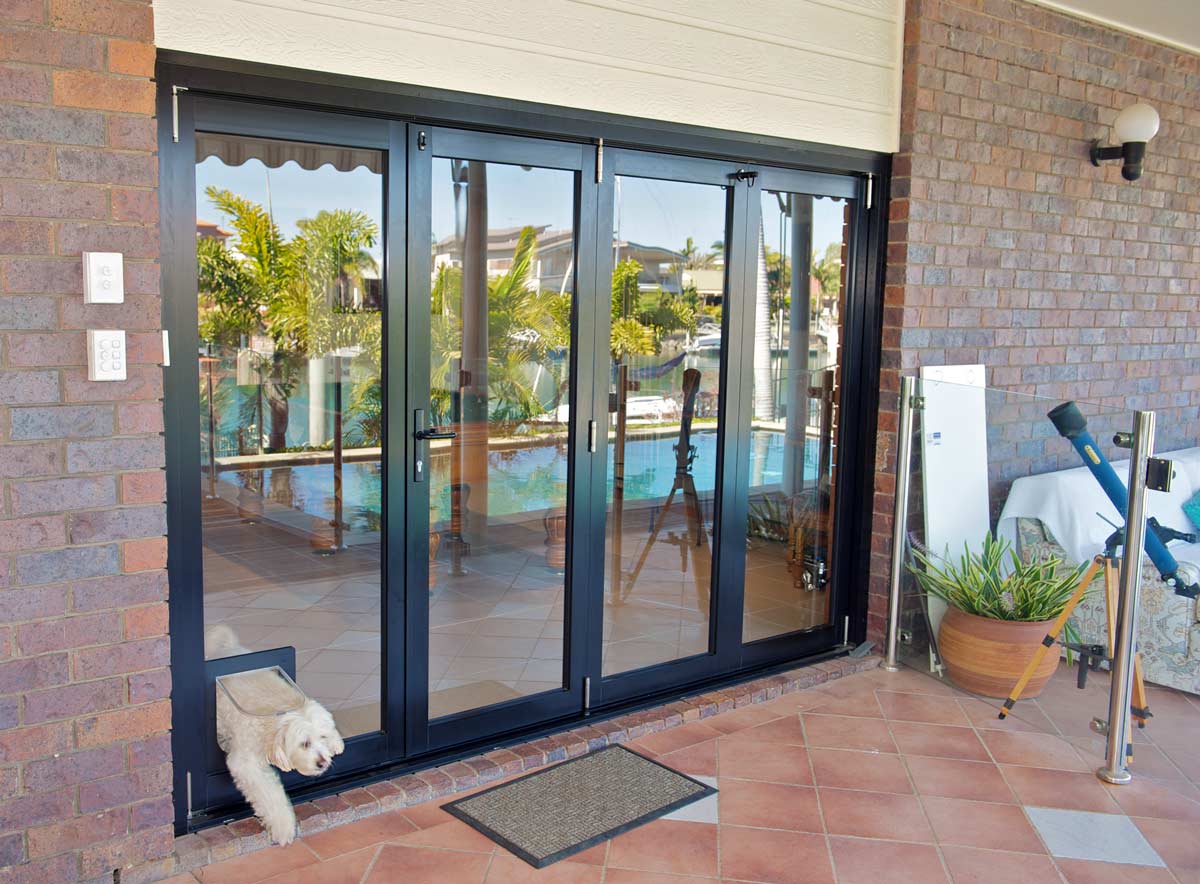

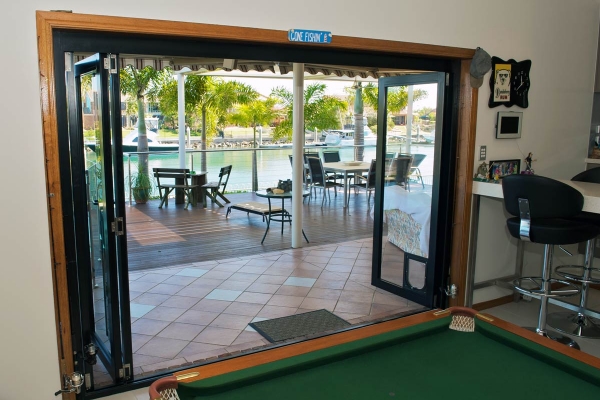

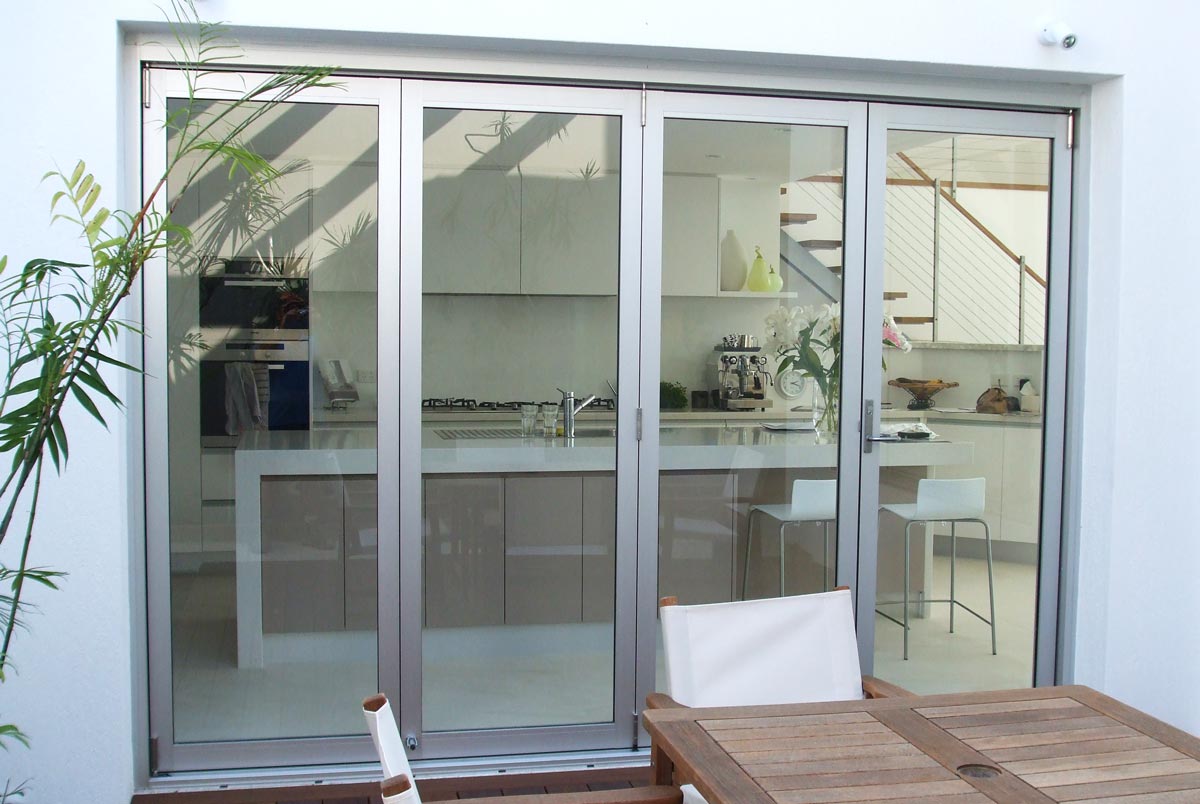

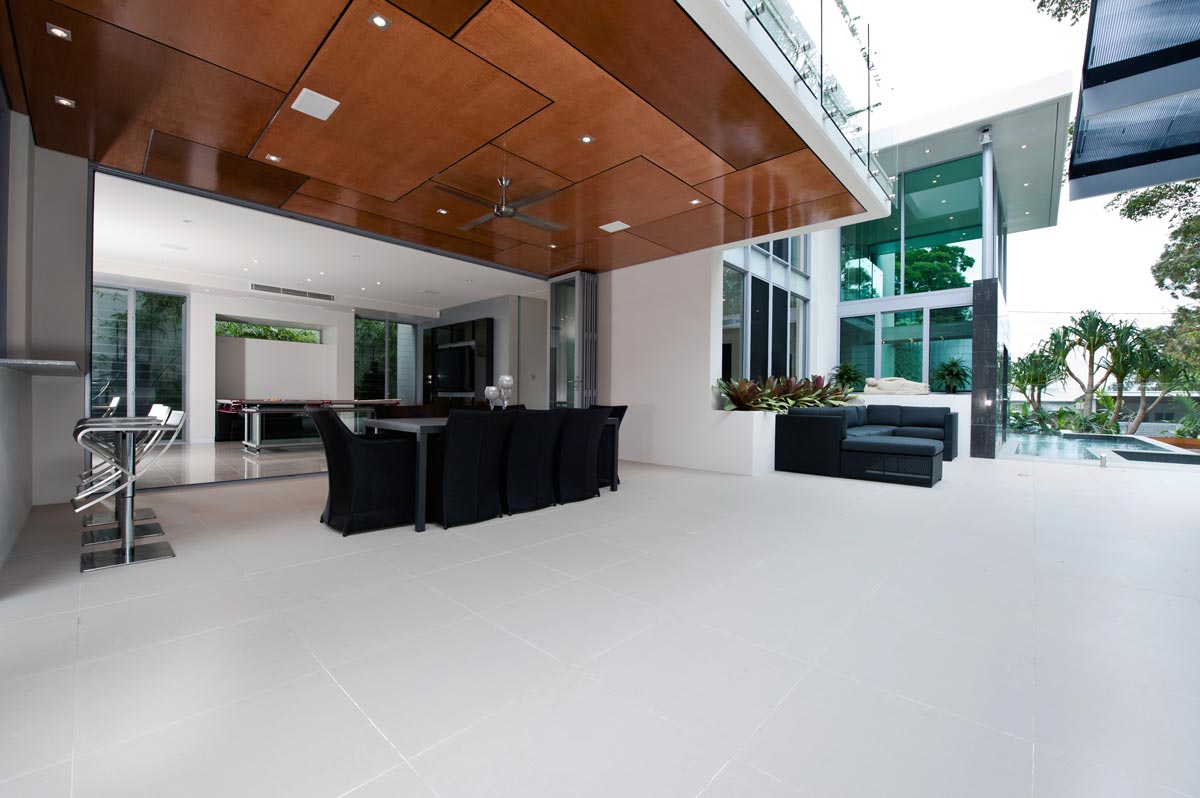

PHOTO GALLERY
